Corner Cutting & Grooving Machine With Paperboard Slitting For Grey Board

The slitting accuracy can be continuously guaranteed and maintained consistently.Traditiaoal die -cutting knife plates are easily deformed.

The machine consists of bi-directional slitting + corner cutting + bi-directional grooving function, eliminating the need for separate cutting and die-cutting when making the rigid boxes.

    oops...!

    no product data.

    Go to homepage
    Suitable for
    Grey Board
    Product name
    SLF-1300K
    Function
    Slitting Grooving Corner Cutting
    Showroom Location
    Longgang City
    Applicable Industries
    Packaging
    Usage
    Making Rigid Box
    key selling points
    Paper cutting corner cutting
    driven type
    Automatic
    Packaging Material
    Wooden Box
    machinery test report
    C/E

    Significant Advantages

    The slitting accuray can be continuously guaranteed and maintained comsistently.Tradiional die-cutting knife plates are easily deformed.

    The machine consists of bi- directional sliting+corner cutting+bi-directional grooving function,eliminating the deed of separate cutting and die-cutting when making the rigid boxes.

    Saving more labor than the traditional process,this machine achieves the same functional capacity while requiring only 2 people.

    Retain the historical size data: input groove pitch, other parts (large drum belt movement, pulling gauge movement, grooving knife seat left and right movement) a key to start in place.

    Equipped with special automatic blade sharpener,the operation of sharpening is more convenient.

    The whole machine is all CNC adjusted,only need to input the product specification size,the machine is automatically adjusted in place,and with the data storage function,to achieve quick change of size.

    All-in-one machine saves workplace and material.

    A blade can be sharpened more than ten times,each grinding cancut 20000 sheets of  large boards,the average cost of cutting each sheet of large boards is only one tenth of traditional slitting machine.

    1300K细节图

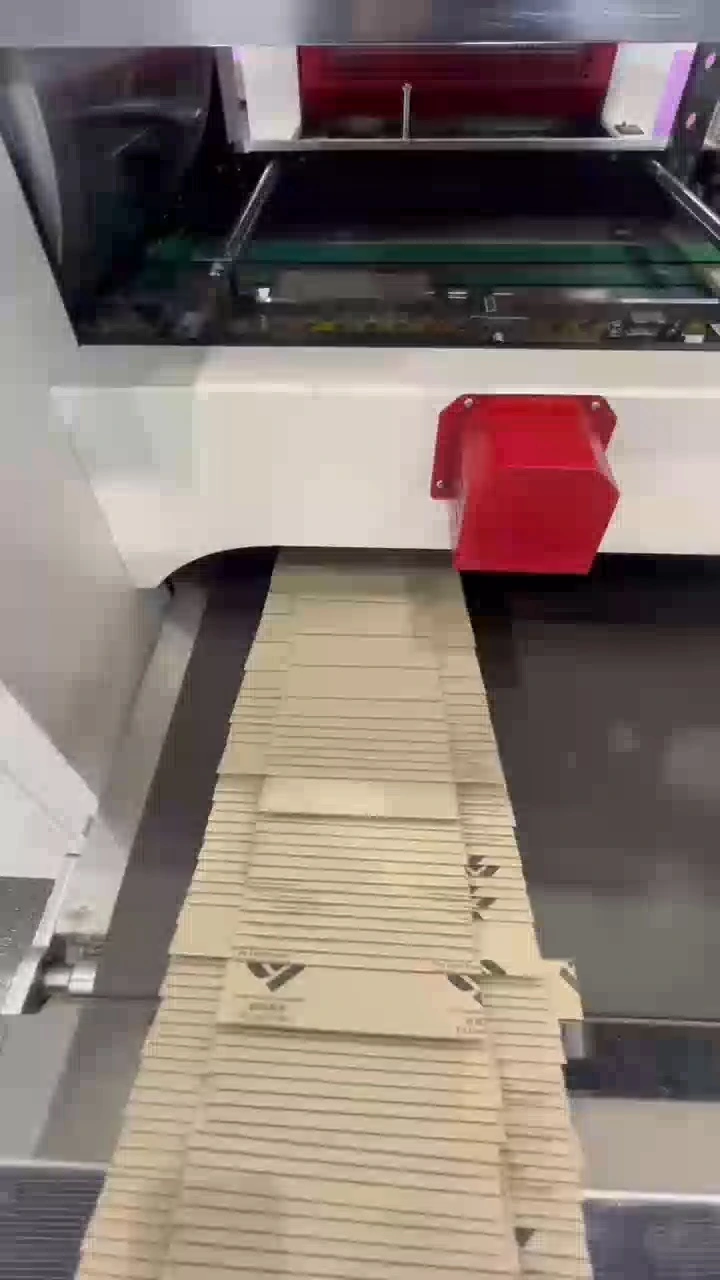

    Product details

    1300K5
    1300K5
    1300K4
    1300K4
    1300K2
    1300K2

    Technical Parameter

    Material size 700*700-890*1194mm

    Material thickness

    2-3.5mm

     knives of 1st slitting step

    7 sets

    Knives of 2nd slitting part

    7 sets

    Slitting accuracy

    ±0.2mm

    Paperboard Feeding speed 20-30pc/min

    Adjust the left and right of Knives

    Full servo

    Adjustment of belts on slitting part

    Full servo

    Corner cutting accuracy

    ±0.2mm

    knives of 1st grooving part

    2 lines

    Knives of 2nd grooving part

    2 lines

    Grooving accuracy

    ±0.15mm

    The way of feeding paper

    Feida air feeding system

    Platform type of adding paper

    Upper and lower platform ( save the time of paper putting )

    Angle of knife holder

    80-140°

    Grooving speed

    If size 300*300(70pcs/min)

    paperboard Size of 1st grooving

    Length:200-600mm  Width:150-600mm

    Paperboard  size of 2nd grooving step

    Length:150-600mm Width:200-600mm

    Technical Parameter

    Material size of 1st step

    Length 195-560mm ,width 195-560mm

    Material size of 2nd step

    Length 195-560mm, width 195-560mm

    Grooving knives of 1st step

    6 sets

    Grooving knives of 2nd step

    6 sets

    Best accuracy

    ±0.05mm

    Normally accuracy

    ±0.1mm

    Material thickness

    200-350GSM

    Grooving angle

    80-140 degree adjustable ,
    (90º=80º-110º ,120º=110º-140º)

    Angle adjustable type

    Each knife head can be adjustable independently

    Speed

    80-100PCS/Min

    Quantity of girder (crossbeam )

    2 sets

    Quantity of knife row

    3 rows ( 1 rows of knives on the 1st girder ,2 rows of knives on the 2nd girder )

    The way of feeding paper

    Feida air feeding system

    Platform type of adding paper

    Upper and lower platform ( save the time of paper putting )

    Adjustable knife left position or right

    Servo automatic positioning

    Grooving depth

    Manual adjustment is required for the first time .
    When you change the product and the knife, as long as the grooving angle

    is unchanged, there is no need to adjust the depth by second time .

    Rolling belt adjustment

    Remove the belt quickly by hand wheel

    Waste cleaning system

    Automatic waste cleaning system with air system+ 2 dedicated conveyor belts

    Weight

    5200KGS

    Power

    13.5KW

    Machine dimension

    3200*2950*1570mm

    Edge correction principle of 1st step

    Belt correction + steel ball correction

    Edge correction principle of 2st step

    Belt correction + steel ball correction

    90º turn around system (direction change)

    Drum flipping
