Saili Corner Cutting & Grooving Machine Suitable for rigid boxes 1

Saili Corner Cutting & Grooving Machine Suitable for rigid boxes 2

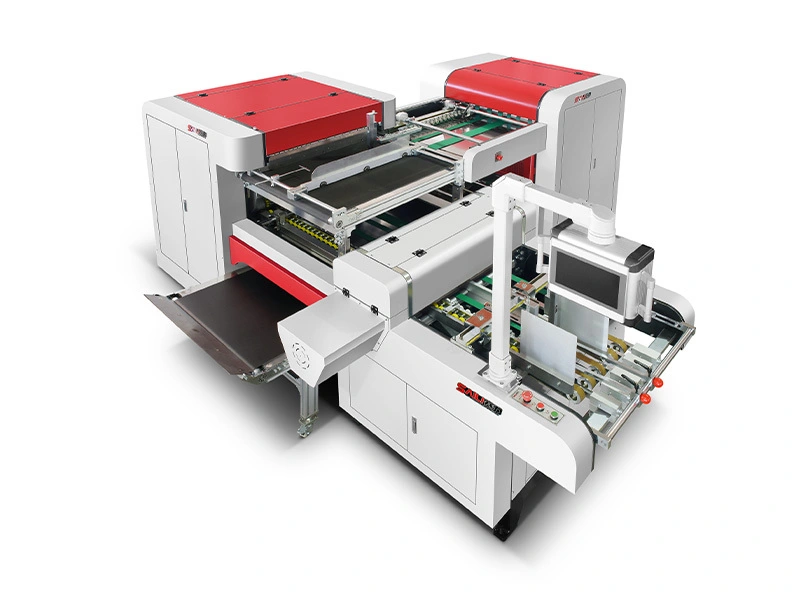

Saili Corner Cutting & Grooving Machine Suitable for rigid boxes

2023 New product: automatic die-cutting and bidirectional grooving machine SLG-600BG is equipped with Servo knives for die cutting the 4 corners of gray board ,and dual direction V-grooving . Suitable for rigid boxes. This machine is newly invented based on the rich experience of automatic bidirectional grooving machinery manufacturing. It can able to cut out the crosswise and lengthwise v- groove (u-groove) on the board by once feeding. It's suitable for various of hard cover and Lid & base boxes ,include Mobile phone boxes,shoe boxes,cosmetic boxes,rigid boxes,etc .

Inquiry

Write a Review

Major advantage

● The machine is mainly include 4 parts : automatic corner cutting , first grooving part ,second grooving part ,dedicated conveyor belt for delivery final cardboard .

● Use longer aligning device and collecting & conveying part to ensure that the cardboard go straight into each grooving parts,then improve the grooving accuracy ,to avoid the high and low corners of box by poor grooving accuracy .

● Improve product quality, improve production efficiency, saves labor .

Product details

1 (13)

2 (10)

3 (9)

Technical Parameter

Material Width	150-600mm	Material Length	200-600mm
Material thickness	1.2-3.0mm	The grooving accuracy	±0.1mm
Grooving angle	80-140degree adjustable	Grooving tool on the first step	8sets
Grooving tool on the second step	4sets	Corner cutting accuracy	≤0.2mm
Way of corner cutting	Servo knife cutting ,cutting length is Control by PLC	Machine power	7.5KW
Speed	80-120PCS/Min (200*200mm)	Main dimension	370031001525mm
Weight	2850KGS	Groove shape	V shape (L shape , U shape customized)

Technical Parameter

Material size of 1st step	Length 195-560mm ,width 195-560mm	Material size of 2nd step	Length 195-560mm, width 195-560mm
Grooving knives of 1st step	6 sets	Grooving knives of 2nd step	6 sets
Best accuracy	±0.05mm	Normally accuracy	±0.1mm
Material thickness	200-350GSM	Grooving angle	80-140 degree adjustable , (90º=80º-110º ,120º=110º-140º)
Angle adjustable type	Each knife head can be adjustable independently	Speed	80-100PCS/Min
Quantity of girder (crossbeam )	2 sets	Quantity of knife row	3 rows ( 1 rows of knives on the 1st girder ,2 rows of knives on the 2nd girder )
The way of feeding paper	Feida air feeding system	Platform type of adding paper	Upper and lower platform ( save the time of paper putting )
Adjustable knife left position or right	Servo automatic positioning	Grooving depth	Manual adjustment is required for the first time . When you change the product and the knife, as long as the grooving angle is unchanged, there is no need to adjust the depth by second time .
Rolling belt adjustment	Remove the belt quickly by hand wheel	Waste cleaning system	Automatic waste cleaning system with air system+ 2 dedicated conveyor belts
Weight	5200KGS	Power	13.5KW
Machine dimension	320029501570mm	Edge correction principle of 1st step	Belt correction + steel ball correction
Edge correction principle of 2st step	Belt correction + steel ball correction	90º turn around system (direction change)	Drum flipping
