Focus on grooving machine manufacturing and service for 28 years.

Automatic Grooving machine increases efficiency and accuracy 1

Automatic Grooving machine increases efficiency and accuracy 2

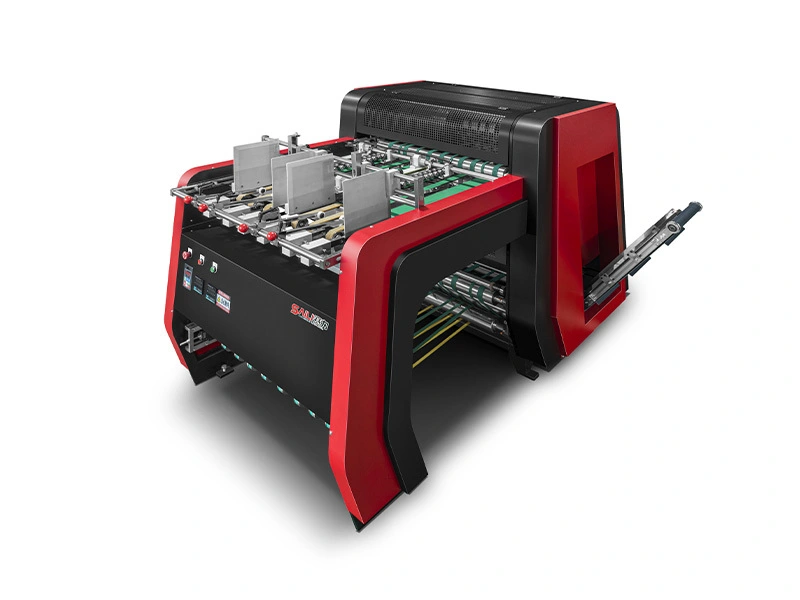

Automatic Grooving machine increases efficiency and accuracy

Adopt belt friction automatic cardboard feeding, single-sided edge automatic correction principle to ensure the accuracy of cardboard feeding and solve the factor of manual cardboard feeding instability. Drum belt strapping grooving can ensure the accuracy and speed of grooving.It is suitable for making heaven and earth cover box (horizontal and vertical slotting),book type box, wine box, cell phone box (electronic products), jewelry box, moon cake box,Shaped boxes of various materials can be grooved as long as there is a single side that can be position Both sides of the receiving part, the upper layer receives the finished product, and the lower layer conveys the four corners to the rear of the machine to clear the waste.

Advantages

● Automatic waste delivery system

Inquiry

Write a Review

Significant Advantages

Our Automatic Grooving Machine increases efficiency and accuracy in grooving operations. With precise cutting technology, it ensures consistent results and reduces material waste. Upgrade your production process with our innovative solution.

Product details

1 (6)

2 (6)

3 (5)

Technical Parameter

Material Width	100-850mm	Material Length	100-450mm
Best Accuracy	±0.05mm	Normal Accuracy	±0.1mm
Fastest Speed	100-120pcs/min (200x200mm)	Normal Speed	20-25 m/min
Groove Degree	80°-140° adjustable	Thickness	250g-3.0mm
Feeding Type	Belt friction type	Single Or Double Feeder	Double feeder
Scroll Belt	Move the belt by hand wheel quickly	Waste Material Delivery System	Automatic waste removal from the side of the machine
Grooving Angle	Independent adjustment of each knife head	Knife Sharpener	2pcs blades sharpen automatically
Quantity Of Groove	12	Power	2.5KW
Dimension	2575x1895x1550mm	Weight	1800KG

Technical Parameter

Material size of 1st step	Length 195-560mm ,width 195-560mm	Material size of 2nd step	Length 195-560mm, width 195-560mm
Grooving knives of 1st step	6 sets	Grooving knives of 2nd step	6 sets
Best accuracy	±0.05mm	Normally accuracy	±0.1mm
Material thickness	200-350GSM	Grooving angle	80-140 degree adjustable , (90º=80º-110º ,120º=110º-140º)
Angle adjustable type	Each knife head can be adjustable independently	Speed	80-100PCS/Min
Quantity of girder (crossbeam )	2 sets	Quantity of knife row	3 rows ( 1 rows of knives on the 1st girder ,2 rows of knives on the 2nd girder )
The way of feeding paper	Feida air feeding system	Platform type of adding paper	Upper and lower platform ( save the time of paper putting )
Adjustable knife left position or right	Servo automatic positioning	Grooving depth	Manual adjustment is required for the first time . When you change the product and the knife, as long as the grooving angle is unchanged, there is no need to adjust the depth by second time .
Rolling belt adjustment	Remove the belt quickly by hand wheel	Waste cleaning system	Automatic waste cleaning system with air system+ 2 dedicated conveyor belts
Weight	5200KGS	Power	13.5KW
Machine dimension	320029501570mm	Edge correction principle of 1st step	Belt correction + steel ball correction
Edge correction principle of 2st step	Belt correction + steel ball correction	90º turn around system (direction change)	Drum flipping
