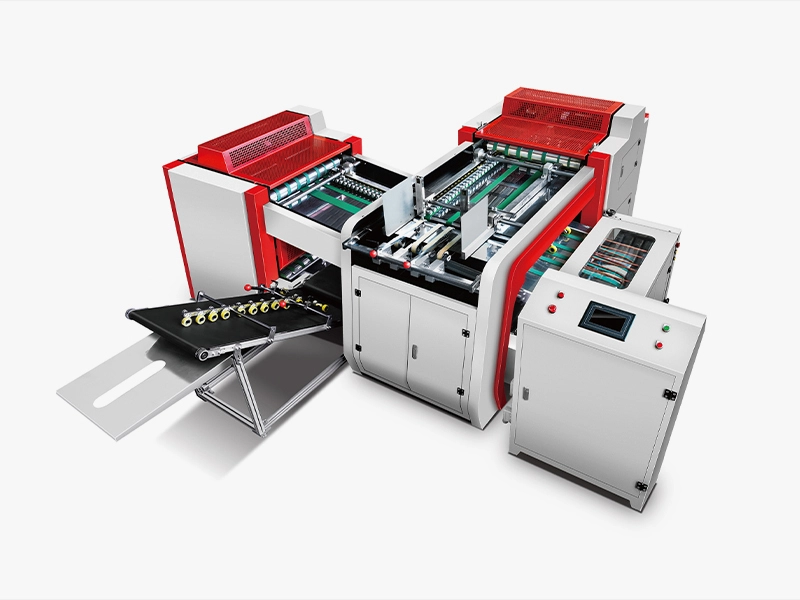

Automatic Grooving Machine For Rigid Box improve efficiency

Farewell to the traditional grooving mode, open a new two-way grooving ,help you to make 100% 90°angle of rigid boxes ,so as to imporve the quality grade of boxes.

Function: 1 Auto feeding →crosswise grooving →collecting →conveying →lengthwise grooving→Auto collector

This machine is newly invented based on the rich experience of grooving machinery manufacturing. It can able to cut crosswise and lengthwise v- groove (u-groove) on the board by once feeding. It's suitable for various of Lid and base boxes ,hard cover,include Mobile phone boxes,shoe boxes,cosmetic boxes,rigid boxes,etc .

Inquiry

Write a Review

Significant Advantages

● The machine is mainly include 4 parts : first grooving part ,collecting & conveying part , second grooving part ,dedicated conveyor belt for delivery final cardboard .

● Use longer aligning device and collecting & conveying part to ensure that the cardboard go straight into each grooving parts,then improve the grooving accuracy ,to avoid the high and low corners of box by poor grooving accuracy .

● Improve product quality, improve production efficiency, saves labor .

● KLQ-600 automatic grooving machine is favored by big printing and packaging enterprises.

● If you need v groover cutting machine , slotting machine , v groove cutting machine,

cardboard box v grooving machine, rigid box grooving machine , it's just our machine , please contact us !

Product details

4 (4)

5 (3)

6 (3)

Technical Parameter

Material Width	100-600mm	Material Length	100-600mm
Material thickness	1.5-3.0mm	Normal grooving accuracy	±0.15mm
The highest grooving accuracy	±0.1mm	Grooving angle	80-140degree adjustable
Grooving tool on the first step	6sets	Grooving tool on the second step	6sets
Big Drum number	3	Machine power	6KW
The fastest speed	30-32M/Min (300*300) 150PCS/Min	Normal speed	20-25M/min (300*300) 130PCS/Min
Main dimension	263539001350mm

Technical Parameter

Material size of 1st step	Length 195-560mm ,width 195-560mm	Material size of 2nd step	Length 195-560mm, width 195-560mm
Grooving knives of 1st step	6 sets	Grooving knives of 2nd step	6 sets
Best accuracy	±0.05mm	Normally accuracy	±0.1mm
Material thickness	200-350GSM	Grooving angle	80-140 degree adjustable , (90º=80º-110º ,120º=110º-140º)
Angle adjustable type	Each knife head can be adjustable independently	Speed	80-100PCS/Min
Quantity of girder (crossbeam )	2 sets	Quantity of knife row	3 rows ( 1 rows of knives on the 1st girder ,2 rows of knives on the 2nd girder )
The way of feeding paper	Feida air feeding system	Platform type of adding paper	Upper and lower platform ( save the time of paper putting )
Adjustable knife left position or right	Servo automatic positioning	Grooving depth	Manual adjustment is required for the first time . When you change the product and the knife, as long as the grooving angle is unchanged, there is no need to adjust the depth by second time .
Rolling belt adjustment	Remove the belt quickly by hand wheel	Waste cleaning system	Automatic waste cleaning system with air system+ 2 dedicated conveyor belts
Weight	5200KGS	Power	13.5KW
Machine dimension	320029501570mm	Edge correction principle of 1st step	Belt correction + steel ball correction
Edge correction principle of 2st step	Belt correction + steel ball correction	90º turn around system (direction change)	Drum flipping
