Saili Automatic Servo Bidirectional Grooving Machine 1

Saili Automatic Servo Bidirectional Grooving Machine 2

Saili Automatic Servo Bidirectional Grooving Machine 3

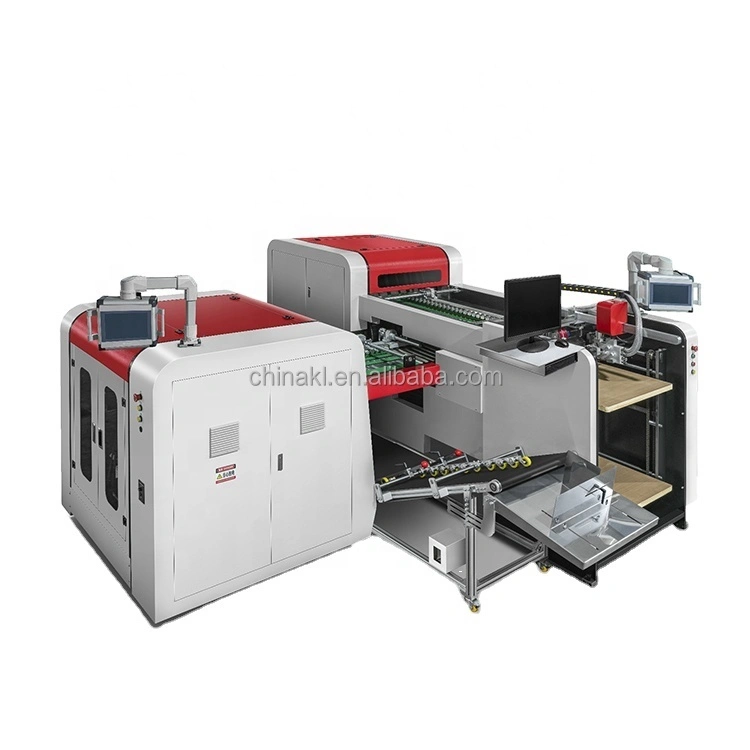

Saili Automatic Servo Bidirectional Grooving Machine

For cutting v shape groove on the different material, such as coated paper, thin paperboard, art paper, Ivory board, it can make the rigid boxes with the best straight edges and 90 degree corners, so as to increase the visual effect of the boxes and improve the quality grade of boxes. The boxes can be rigid box, luxury box, jewelry box, electronic product box, cosmetic box, etc.

Advantages

● Retain the historical size data

● Servo numerical control adjustment of rolling belt
● One slant conveyor belt for receiving final product

● Servo numerical control adjustment of grooving knife

● Servo numerical control adjustment of corrective pulling gauge

Inquiry

Write a Review

Significant Advantages

● Servo numerical control adjustment of grooving knife: left and right movement accuracy 0.02mm.

● Servo numerical control adjustment of corrective pulling gauge.

● Servo numerical control adjustment of rolling belt.

● Retain the historical size data: input groove pitch, other parts (large drum belt movement, pulling gauge movement, grooving knife seat left and right movement) a key to start in place.

● Feeding part: with vacuum adsorption, conducive to the special paper sheet feeding.

● Automatic waste discharge system, automatic climbing out of the material receipt.

● Paperboard 90 degree turn around system---mainly through the middle drum, high speed, high stability, no scratch.

● Two dedicated conveyor belt for removing the waste material out of the machine.

● One slant conveyor belt for receiving final product: to save time and man power.

Product details

2 (3)

1 (3)

3 (3)

Technical Parameter

Material size of 1st step	Length 195-560mm, width 195-560mm	Material size of 2nd step	Length 195-560mm, width 195-560mm
Grooving knives of 1st step	6 sets	Grooving knives of 2nd step	6 sets
Best accuracy	±0.05mm	Normally accuracy	±0.1mm
Material thickness	200-350GSM	Grooving angle	80-140 degree adjustable, (90º=80º-110º, 120º=110º-140º)
Angle adjustable type	Each knife head can be adjustable independently	Speed	80-100PCS/Min
Quantity of girder (crossbeam )	2 sets	Quantity of knife row	3 rows ( 1 rows of knives on the 1st girder ,2 rows of knives on the 2nd girder )
The way of feeding paper	Feida air feeding system	Platform type of adding paper	Upper and lower platform ( save the time of paper putting )
Adjustable knife left position or right	Servo automatic positioning	Grooving depth	Manual adjustment is required for the first time. When you change the product and the knife, as long as the grooving angle is unchanged, there is no need to adjust the depth by second time .
Rolling belt adjustment	Remove the belt quickly by hand wheel	Waste cleaning system	Automatic waste cleaning system with air system+ 2 dedicated conveyor belts
Weight	5200KGS	Power	13.5KW
Machine dimension	320029501570mm	Edge correction principle of 1st step	Belt correction + steel ball correction
Edge correction principle of 2st step	Belt correction + steel ball correction	90º turn around system (direction change)	Drum flipping

Technical Parameter

Material size of 1st step	Length 195-560mm ,width 195-560mm	Material size of 2nd step	Length 195-560mm, width 195-560mm
Grooving knives of 1st step	6 sets	Grooving knives of 2nd step	6 sets
Best accuracy	±0.05mm	Normally accuracy	±0.1mm
Material thickness	200-350GSM	Grooving angle	80-140 degree adjustable , (90º=80º-110º ,120º=110º-140º)
Angle adjustable type	Each knife head can be adjustable independently	Speed	80-100PCS/Min
Quantity of girder (crossbeam )	2 sets	Quantity of knife row	3 rows ( 1 rows of knives on the 1st girder ,2 rows of knives on the 2nd girder )
The way of feeding paper	Feida air feeding system	Platform type of adding paper	Upper and lower platform ( save the time of paper putting )
Adjustable knife left position or right	Servo automatic positioning	Grooving depth	Manual adjustment is required for the first time . When you change the product and the knife, as long as the grooving angle is unchanged, there is no need to adjust the depth by second time .
Rolling belt adjustment	Remove the belt quickly by hand wheel	Waste cleaning system	Automatic waste cleaning system with air system+ 2 dedicated conveyor belts
Weight	5200KGS	Power	13.5KW
Machine dimension	320029501570mm	Edge correction principle of 1st step	Belt correction + steel ball correction
Edge correction principle of 2st step	Belt correction + steel ball correction	90º turn around system (direction change)	Drum flipping
