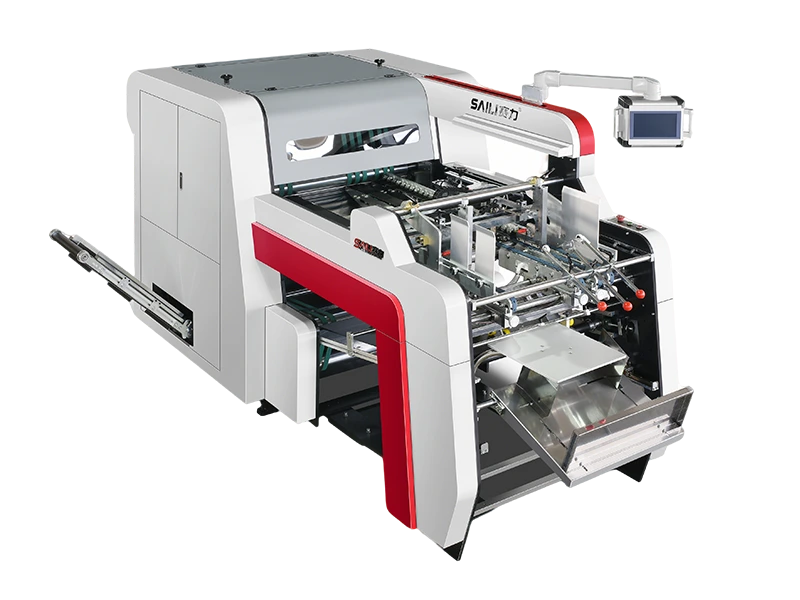

Automatic Servo Grooving Machine For all kinds of gray board 1

Automatic Servo Grooving Machine For all kinds of gray board 2

Automatic Servo Grooving Machine For all kinds of gray board 3

Automatic Servo Grooving Machine For all kinds of gray board

For all kinds of gray board, cardboard ,Ivory board, corrugated board to cut V-groove. High precision, no dust, no noise, high efficiency, high energy saving, environmental protection. Help you to solve all kinds of packaging box grooving problems, to create high-end rigid boxes.

Features

● For all kinds of gray board, cardboard ,Ivory board, corrugated board to cut V-groove.

● High precision, no dust, no noise, high efficiency, high energy saving, environmental protection.

● Help you to solve all kinds of packaging box grooving problems, to create high-end rigid boxes.

Inquiry

Write a Review

Main advantages

● Servo numerical control adjustment of grooving knife: left and right movement accuracy 0.02mm.

● Servo numerical control adjustment of corrective pulling gauge.

● Servo numerical control adjustment of rolling belt.

● Retain the historical size data: input groove pitch, other parts (large drum belt movement, pulling gauge movement, grooving knife seat left and right movement) a key to start in place.

● Feeding part: with vacuum adsorption, conducive to the special paper sheet feeding

● Automatic waste discharge system, automatic climbing out of the material receipt

Product details

3 (14)

5 (13)

4 (14)

Technical Parameter

Width of work piece	120-850mm	Length of work piece	120-500mm
Material thickness	300GSM-3.5mm	Feeding way	Vacuum adsorption belt friction feeding
Single or double feeding	Single feeder	Grooving accuracy	±0.05mm
The best speed	80-120PCS/Min (size 200*200mm)	Normal speed	70-80PCS/Min
Number of crossbeam	2	Grooving degree	90-130°
Number of grooving knife	12 ( 3 rows of grooving knives )	Power	4.5KW
Auto blade sharpener	1 SET	Motor of collecting board	Variable frequency speed control
Weigh	3.2KGS	Dimension	326019001730mm

Technical Parameter

Material size of 1st step	Length 195-560mm ,width 195-560mm	Material size of 2nd step	Length 195-560mm, width 195-560mm
Grooving knives of 1st step	6 sets	Grooving knives of 2nd step	6 sets
Best accuracy	±0.05mm	Normally accuracy	±0.1mm
Material thickness	200-350GSM	Grooving angle	80-140 degree adjustable , (90º=80º-110º ,120º=110º-140º)
Angle adjustable type	Each knife head can be adjustable independently	Speed	80-100PCS/Min
Quantity of girder (crossbeam )	2 sets	Quantity of knife row	3 rows ( 1 rows of knives on the 1st girder ,2 rows of knives on the 2nd girder )
The way of feeding paper	Feida air feeding system	Platform type of adding paper	Upper and lower platform ( save the time of paper putting )
Adjustable knife left position or right	Servo automatic positioning	Grooving depth	Manual adjustment is required for the first time . When you change the product and the knife, as long as the grooving angle is unchanged, there is no need to adjust the depth by second time .
Rolling belt adjustment	Remove the belt quickly by hand wheel	Waste cleaning system	Automatic waste cleaning system with air system+ 2 dedicated conveyor belts
Weight	5200KGS	Power	13.5KW
Machine dimension	320029501570mm	Edge correction principle of 1st step	Belt correction + steel ball correction
Edge correction principle of 2st step	Belt correction + steel ball correction	90º turn around system (direction change)	Drum flipping
