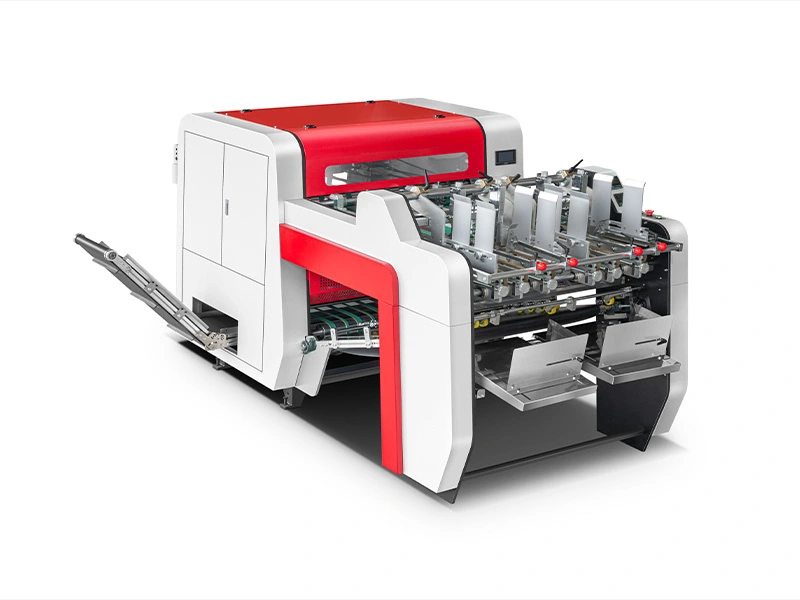

Automatic partial grooving machine Servo automatic adjustment

Material size of 1st step

Length 195-560mm ,width 195-560mm

Material size of 2nd step

Length 195-560mm, width 195-560mm

Grooving knives of 1st step

6 sets

Grooving knives of 2nd step

6 sets

Best accuracy

±0.05mm

Normally accuracy

±0.1mm

Material thickness

200-350GSM

Grooving angle

80-140 degree adjustable ,
(90º=80º-110º ,120º=110º-140º)

Angle adjustable type

Each knife head can be adjustable independently

速度

80-100PCS/Min

Quantity of girder (crossbeam )

2 sets

Quantity of knife row

3 rows ( 1 rows of knives on the 1st girder ,2 rows of knives on the 2nd girder )

The way of feeding paper

Feida air feeding system

Platform type of adding paper

Upper and lower platform ( save the time of paper putting )

Adjustable knife left position or right

Servo automatic positioning

Grooving depth

Manual adjustment is required for the first time .
When you change the product and the knife, as long as the grooving angle

is unchanged, there is no need to adjust the depth by second time .

Rolling belt adjustment

Remove the belt quickly by hand wheel

Waste cleaning system

Automatic waste cleaning system with air system+ 2 dedicated conveyor belts

重量

5200KGS

力量

13.5KW

机器尺寸

3200*2950*1570毫米

Edge correction principle of 1st step

Belt correction + steel ball correction

Edge correction principle of 2st step

Belt correction + steel ball correction

90º turn around system (direction change)

Drum flipping
