Automatic bidirectional pulp mold grooving machine 1

Automatic bidirectional pulp mold grooving machine 2

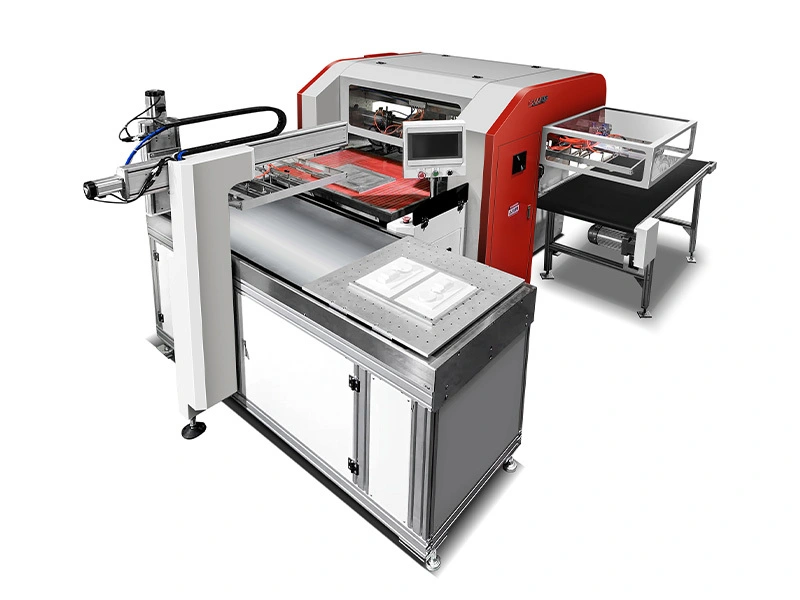

Automatic bidirectional pulp mold grooving machine

This machine is suitable for grooving and partial V-grooving of paper pulp mold,paper trays, corrugated board, cardboard and ivory board, etc.

Inquiry

Write a Review

Main advantages

Increase productivity and efficiency with our automatic bidirectional pulp mold grooving machine. Streamline production processes and reduce material waste with precision grooving capabilities. Upgrade your operation with this innovative solution.

Product details

4 (16)

5 (15)

6 (5)

Technical Parameter

Material Size	Length：50-800mm Width：50-600mm	Working Platform Size	650x1000mm
Pulp Mold Height	≤150mm	Waste Discharge Method	Automatic blowing and waste discharge
Receiving Method	Automatic discharge	Number of microscopic adjustment scale	0.01mm
Grooving precision	±0.1mm	Groove degree	90-130° adjustable
Distance of each groove	0-800mm	Paper-plastic thickness	1.0-3.5mm
Speed	8-12trips/min	Grooving lines	8lines
Crossbeam	1st part with 1 row of knife(totally 6 knives), 2nd part with 1 row of knife(totally 2 knives)	Power	6.0KW
Dimension	186014621500mm	Weight	2800KG

Technical Parameter

Material size of 1st step	Length 195-560mm ,width 195-560mm	Material size of 2nd step	Length 195-560mm, width 195-560mm
Grooving knives of 1st step	6 sets	Grooving knives of 2nd step	6 sets
Best accuracy	±0.05mm	Normally accuracy	±0.1mm
Material thickness	200-350GSM	Grooving angle	80-140 degree adjustable , (90º=80º-110º ,120º=110º-140º)
Angle adjustable type	Each knife head can be adjustable independently	Speed	80-100PCS/Min
Quantity of girder (crossbeam )	2 sets	Quantity of knife row	3 rows ( 1 rows of knives on the 1st girder ,2 rows of knives on the 2nd girder )
The way of feeding paper	Feida air feeding system	Platform type of adding paper	Upper and lower platform ( save the time of paper putting )
Adjustable knife left position or right	Servo automatic positioning	Grooving depth	Manual adjustment is required for the first time . When you change the product and the knife, as long as the grooving angle is unchanged, there is no need to adjust the depth by second time .
Rolling belt adjustment	Remove the belt quickly by hand wheel	Waste cleaning system	Automatic waste cleaning system with air system+ 2 dedicated conveyor belts
Weight	5200KGS	Power	13.5KW
Machine dimension	320029501570mm	Edge correction principle of 1st step	Belt correction + steel ball correction
Edge correction principle of 2st step	Belt correction + steel ball correction	90º turn around system (direction change)	Drum flipping
